DIY: Retractable Pergola Canopy Tutorial

Pergolas can offer some great privacy, but they’re not always the best for shade.  In my backyard, the sun shines all day long and man, is it HOT out there!

While you can buy pergola shades for a few hundred bucks, you can also make your own pretty inexpensively.

I’ll show you how I made this one using a few materials from the hardware store and some outdoor fabric.

How to make a pergola canopy for shade

You will need:

How to make a shade for your pergola

Start by measuring the top of the pergola to figure out how much fabric you will need. Since my pergola has a hanging light in the center, I made two separate shades to go on each side of it.

Because of this, I needed 8 pieces of hardware for the corners as opposed to 4.

How to make a canopy for pergola shade

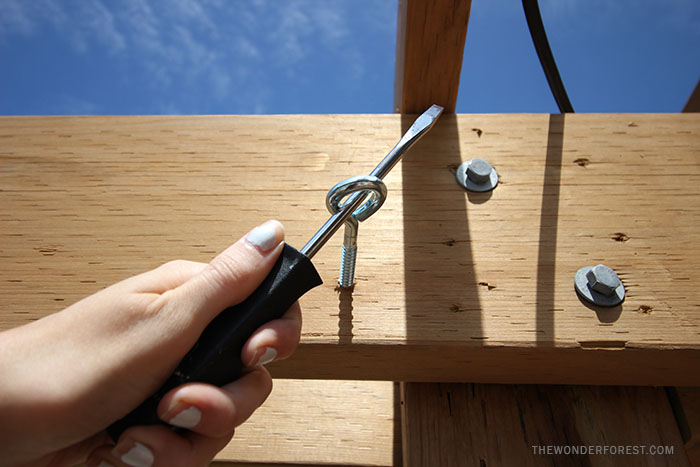

Decide where you want your shade to sit and screw one of your screw eyes into the frame. You can use a screwdriver like this to help easily turn the screw eye clockwise.

Make sure you place the screw at the same distance on each corner.

How to make a canopy for pergola shade

diy-pergola-canopy-3

How to make a canopy for pergola shade

How to make a canopy for pergola shade

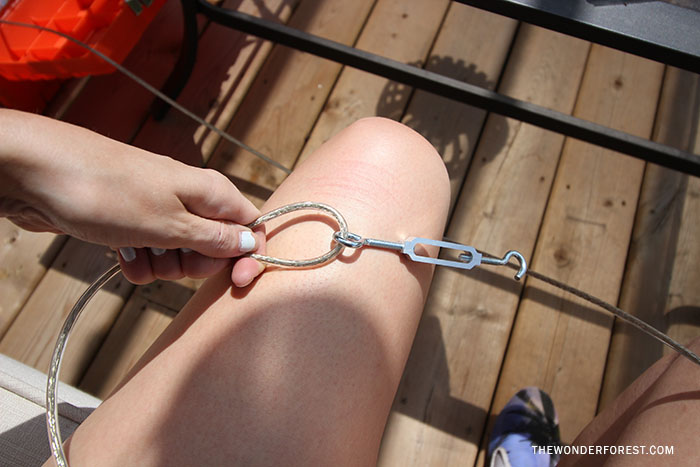

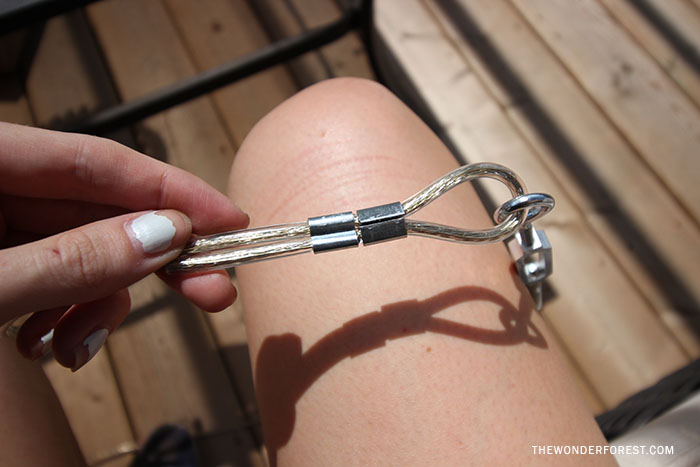

For each turnbuckle, insert your wire through the looped end and secure with wire clamps as shown. Placing two clamps opposite ways will ensure a tight connection.

How to make a canopy for pergola shadeHow to make a canopy for pergola shadeHow to make a canopy for pergola shade

Hook the other end of the turnbuckle onto your screw eye, and fasten the opposite end in a loop with wire clamps as shown above.

How to make a canopy for pergola shade

How to make a canopy for pergola shade

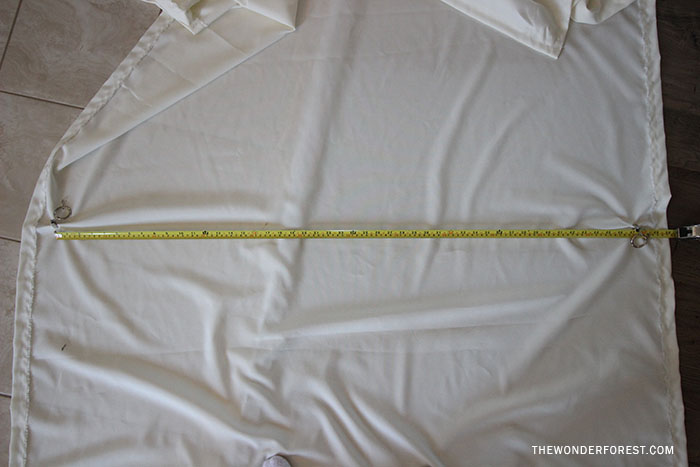

Cut your fabric to size. I hemmed the edges as well.  Next, measure the distance of the screw eyes from one to the other on your pergola and then place the drapery hooks at those measurements.

These hooks are awesome because they hold on SO TIGHT and you can easily remove the fabric to wash it.

How to make a canopy for pergola shade

All that’s left to do now is to thread your fabric onto the clothesline with the drapery rings and tighten those tension/turnbuckles!

How to make a canopy for pergola shade

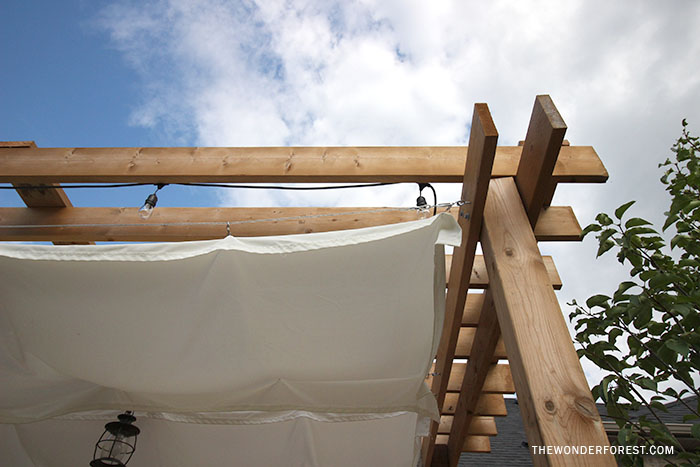

You can open and close the curtains as you like! You can also add pull strings to the corners if you want to. I’m pretty happy with my canopy and hope this tutorial sparked an idea of your own!
